AsProgrammer dregmod v5 for Bus Pirate 5 - dump & flash SPI / I2C chips

General
1

asprogrammer_dregmod_v5_buspirate_v5plus_v2

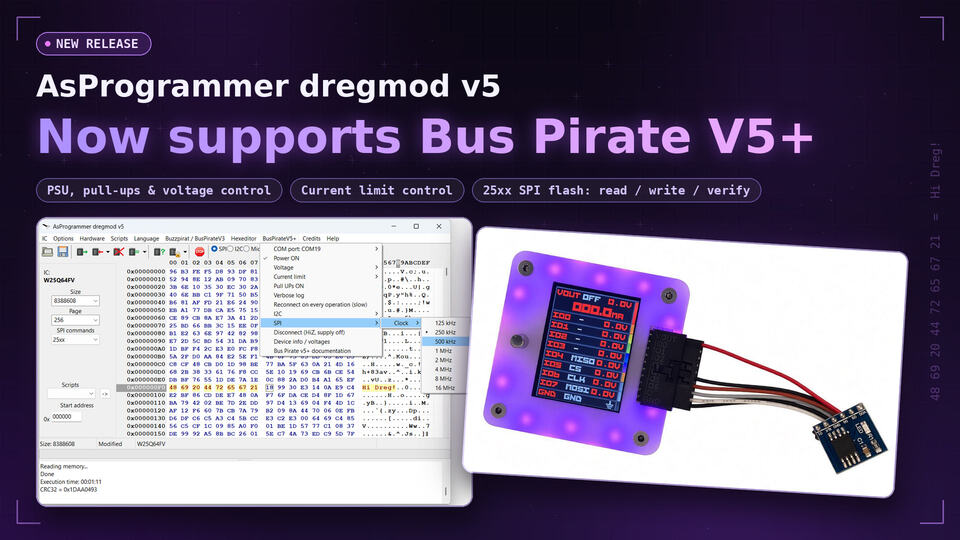

asprogrammer_dregmod_v5_buspirate_v5plus_v2960×540 92.1 KB

AsProgrammer dregmod is a free, open source Windows GUI to read, write, erase and verify memory chips: SPI NOR flash (25xx), I2C EEPROMs (24xx) and more. Select the chip, dump it to a file or flash a new image, verify with CRC. With a Bus Pirate as the programmer you get all of this over SPI and I2C, no extra hardware needed.

New in v5:

  • Bus Pirate 5, 6 and 7 support
  • Bus Pirate v3.x
  • New I2C scanner: address map, a guess at each device, one click copies the address into the I2C settings. It runs as a command and no longer blocks the GUI.
  • Smoother UX: COM ports are a live list, no more GUI freezes, no external BP DLL.
  • Reliability fixes and everything pending from upstream UsbAsp-flash merged in, including new supported chips.

Download & source:

Feedback and bug reports welcome.

I’ve added several practical Bus Pirate v6 tutorials to the project’s GitHub.

4 Likes
2

I will add this to docs next time I do an update.

1 Like
3

@ian I’ll do it, don’t worry. This week I want to wrap up several pending Bus Pirate things. I haven’t done it before because it felt a bit like self-spam, but if you’re okay with it I’ll include it along with the AnalysIR and the rest.

2 Likes
4

By all means please do. People need to know about all the cool stuff they can do with the Bus Pirate and trolling the forum to find info generally = unhappy users lol :slight_smile:

2 Likes
