Demo from my big bag of breakout boards

I have a big ziplock bag full of breakout boards I bought on Taobao. I’m not totally sure what’s in there, so I’m just pulling out a random one every few days to do a demo.

It’s not a coincidence that the first breakout is a SI7021/HTU21/STH21/HDC1080 I2C humidity and temperature sensor. I have more than 30 of these boards for reasons I don’t recall.

The demo is in the firmware manual (still rebuilding at the moment). I also added I2C mode macro (2) which reads the temperature and humidity, the serial number and the chip firmware version.

2 Likes

A quick demo of the 1-Wire DS18B20 temperature sensor, because I was doing 1-Wire last week.

1 Like

Here’s a link to the SI7021 demo:

Next week I have a lux sensor demo to post.

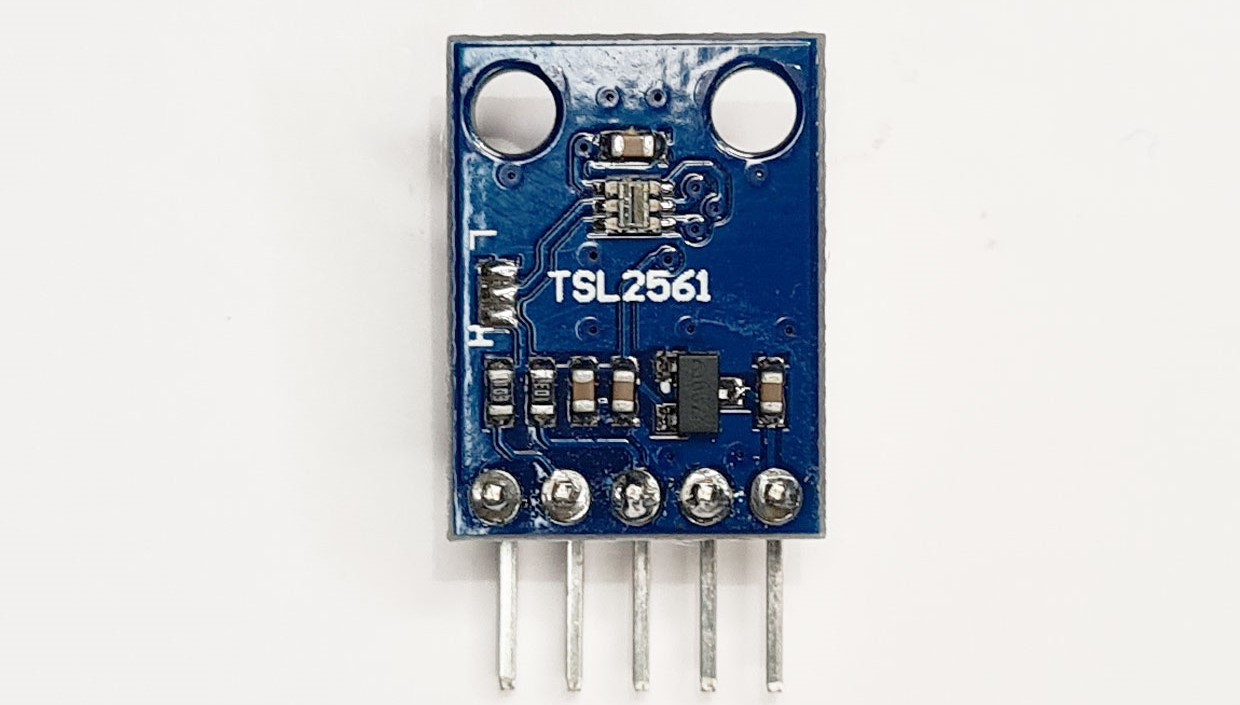

This week I added a demo of a TSL2561 light/lux sensor. This chip is a little old, but there’s still tons of them out there on Aliexpress breakout boards. I had fun showing the math to calculate the value, most walk throughs just toss you a library and call it a day. I enjoy looking into the magic that makes it all happen.

1 Like

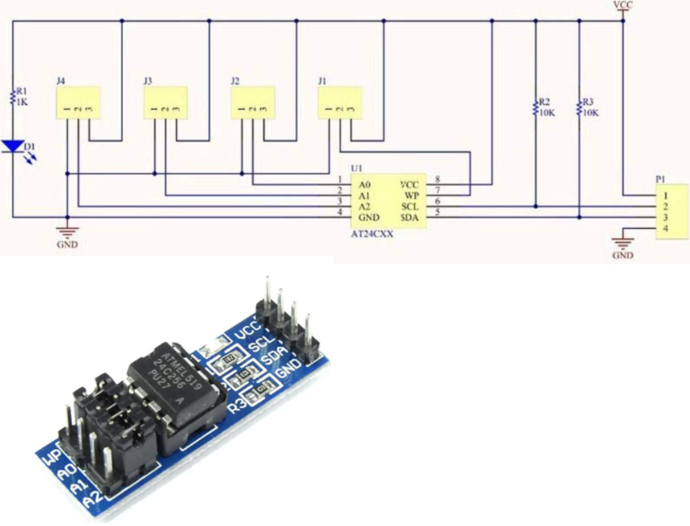

Today we have a nice write-up from @dreg on using the AT24C256 I2C EEPROM. This inexpensive chip adds 32K bytes of permanent storage to your project, and full featured breakout boards are around $2 on AliExpress.

1 Like
