Digital signatures for RP2350 boards

ian · February 13, 2025, 4:52pm

Writing a pre-flight check for burning the cert. Let me know if something seems off. I’m not transporting with a CRC or anything because I assume a corrupt cert won’t verify:

Is the cert valid against the public key?
Does the cert serial match the RPi serial?
Are the pages we’re going to use already protected?**
Are the rows we plan to use empty?

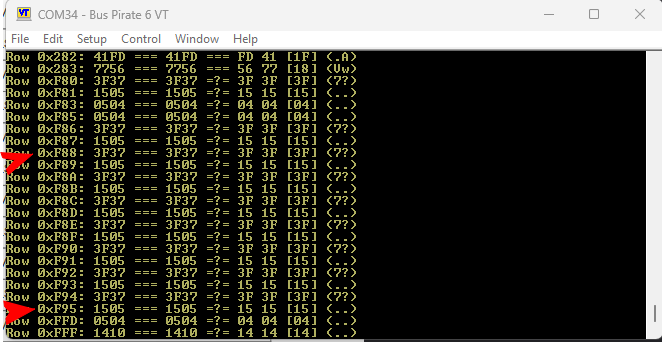

Burn and verify each row (burn is actually very slow!)

Number of OTP pages required: 7
Protection pages: 004 : 00a
First protection row to program: f89
Last protection row to program: f95
Cert write to OTP: 32

**Code to determine what to protect seems to be working. Return status 32 means OTP not blank (because I have a cert there )

One issue with my current approach is that I use the first row (2 bytes) to store the length of the cert. I don’t believe the length is consistent. So I need to:

Reshuffle all the math to account for an extra row, or
We’ve discussed some kind of directory structure with entries starting from the last free page and moving forward. If that contains the data length, then we wouldn’t need to start the cert with it.

Leading to a few concerns:

The protection fuses are not very granular, so the directory table would be unprotected (only soft protection) and could become corrupted rendering everything useless.
Perhaps the “really important stuff” like cert, any hardware/manufacturing info should have a fixed location (along with a directory entry) so it can survive a corrupt directory table
Looping us back to needing the cert length at in the first row of the cert.

EDIT: it seems like if only the serial and validity change the cert is the same length, but what if we update a field in the future? Think the issue still applies.

mbrugman · February 13, 2025, 5:13pm

I’m a fan of the directory structure

The DER format has the length encoded at the beginning!

The first byte is 0x30
The next byte is the length (maybe):
- If the length is less than 128 bytes, then the length is second byte (up to 0x80).
- If the length is 128 to 256, then you’ll have 0x81 for the second byte and the third byte will be the number of bytes from 128 to 256 (0x81 XX)
- If the length is greater than 256, then byte 2 is 0x82 and the next two bytes are the length: 0x82 XX XX

If I look at the post above where you’re showing the row data, I see:

Row 0x101 is 0x8230 - correcting for endianness, that’s 0x30, 0x82. This is a DER (0x30 in first byte), length is > 256 bytes (0x82) in the second byte
Row 0x102 is 0x0203; changing endianness makes is 0x0302 or 770 decimal
- (I think that means read the next 770 bytes as cert info; you’re already past the first four bytes).

I see Row 0x100 is 0x0603, little endian for decimal 774 which matches the above stuff.

Parsing ASN.1 stuff is strange with rules like that

For example, the cert I made before:

┌──(matty💊s76)-[~/tmp]
└─$ ll cert.der
-rw-rw-r-- 1 matty matty 1477 Jan 29 09:19 cert.der

┌──(matty💊s76)-[~/tmp]
└─$ hexdump -C cert.der | head -3
00000000  30 82 05 c1 30 82 03 a9  a0 03 02 01 02 02 14 74  |0...0..........t|
00000010  bb 7e ac 70 85 84 d7 b7  c9 ca f4 a2 0a 3f 26 ef  |.~.p.........?&.|
00000020  88 49 42 30 0d 06 09 2a  86 48 86 f7 0d 01 01 0b  |.IB0...*.H......|

0x30 == DER
0x82 == len > 256 bytes
0x05c1 == 1473 bytes (cert is 1477, we’ve already read 4 bytes)

EDIT: Is the endianness thing part of OTP?
EDIT 2: Ope, forgot this ARM is little endian

ian · February 13, 2025, 5:44pm

Oh excellent, thank you! I assume for the pub key as well. Will add that. It also gives a way to search for the cert if the directory is corrupted I suppose.

The packing of the bytes was entirely my choice, but I did so thinking I can do some fancy magic to pull it back together. Currently it’s just << | , and there really isn’t any shame in that either.

mbrugman · February 13, 2025, 6:31pm

Yes, that should hold true for all DER encoded things, because that are all ASN.1.

When penetrating and desperate to find secrets in binaries, I’ve searched for 0x3080/81/82. You don’t get hits very often, but it’s worth a try

(I mean you get a lot of hits, but not often a key)

ian · February 14, 2025, 2:17pm

Cert length: 774
Pubkey length: 294

Thanks again for the tip! Seems to be working for 0x82.

    if (der[1] <= 0x80) {
        return der[1]+2;
    } else if (der[1] == 0x81) {
        return der[2]+3;
    } else if (der[1] == 0x82) {
        return ((der[2] << 8) | der[3])+4;
    }

As best I can tell, the DER length depends on the number of length fields used? So +2/+3/+4? Does this look ok to you?

mbrugman · February 14, 2025, 2:40pm

Yes, that looks good!

You don’t need to store the public key in the OTP. Only the cert needs to be immutable. Public key can (and should) be hard coded in the firmware.

If the key is in OTP, a counterfeiter could make their own keys and certs that look legit, and put their public key in the OTP.

With the key in the firmware, anyone trying to change it has to do a PR, which should be reviewed and caught.

Edit: ope - second case should be der [2] + 128 + 3

ian · February 14, 2025, 3:32pm

Great, thank you so much! Updated.

Yes, the public key is in the firmware. I just wanted to be fancy and extract the length from it as well

mbrugman · February 14, 2025, 3:45pm

Oh good; sorry about the confusion. I was answering from my phone and didn’t actually look at the code

ian · February 14, 2025, 4:02pm

Cert pages locked. One full cycle completed, and one PICO2 sacrificed

The code is an absolute mess, but now I know how to put it all together this weekend.

Some things:

Will extract the length from the cert instead of burning it at the beginning of the cert
I’m going to run with cert starts at row 0x100 until suggested otherwise
Need to look at what Henry proposed for the directory system and implement that

I’m going to expand the “model” to include the revision, but there’s a little bug somewhere I may need Henry to have a look at, we’ll see
We have a field “manufacturing data” in the whitelabel space, it appears as the board-ID. I’m planning to program the RPi unique ID here as ASCII numbers so the board can be identified even if a firmware won’t load.

ian · February 14, 2025, 8:05pm

Looked into this. I don’t see the ability to do per file protections in github, but I can make the public key a submodule in a repo where we lock the main branch and don’t accept pull requests.

ian · February 15, 2025, 4:57pm

Pushed a big update to otp_ branch:

Complete cert verification and burning function that can be used from binmode
Updated cert function to read from OTP

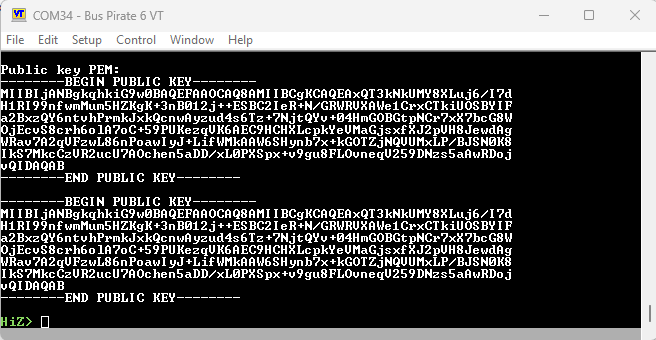

That big buffer was problematic again, so I wrote my own thin PEM encoder

Todo:

Manufacturing binmode to burn cert
~~cert command burn cert from file (for existing users)~~
~~Check in public key as a git submodule to prevent pull request attacks~~
~~Remove dump cert&key to file (too nasty, and probably not very useful beyond debugging)?~~
Directory structure format?
Location of cert and other standard formatted data in OTP?
Format of other data in OTP?

Welcome comments on “?” items.

Edit:

UF2 Bootloader v1.0
Model: Bus Pirate 6
Board-ID: F9:04:9D:32:5E:76:45:4F

Starting fresh with a new PICO2:

Whitelabel info burned
Manufacturing string burned (unique ID as ASCII)
Cert burned from “file” (the file is simulated as a variable in the cert command)

Next I’ll generate the final master private key and check the public key in as a submodule.

mbrugman · February 15, 2025, 6:15pm

My $0.02:

If it’s necessary to get the cert, it would just be a matter of getting all of OTP and pulling it out. Even just displaying it all as hex in the terminal and copy/pasting for a Python script or something to extract. A fun exercise for someone

I’m still a fan of @henrygab 's work there.

Starting at row 0x100 makes sense.

ian · February 16, 2025, 3:39pm

Created the “real” private key and stored it safely.

The public key is now in a separate repo, which is included as a submodule. Be sure to init the submodules when working with the otp_ branch.

General cleanup and finalizing. The burn cert from file appears to work, but I have only simulated it and not used an actual Bus Pirate.

For the “other info” page I’d like to store some of the cert info in the clear:

0x01 Device name
0x02 Device version
0x03 Device revision
0x04 Production location
0x05 Manufacturer
0x06 Production date

0x01Bus Pirate0x00 0x02 5XL 0x00 0x03 0 0x00 0x04 2015-2-16 16:39 0x00 0x05China0x00

I’m thinking maybe store these as ASCII text with a beginning token and null termination. It is redundant, but I would prefer not to parse the cert to get at that info. Especially if there are ever clone devices without a valid cert. We could just trust the cert even if not valid, but I would think an invalid cert shouldn’t be trusted.

There are 128bytes in the page, any other info that should go in there?

ian · February 16, 2025, 5:21pm

henrygab:

NOTE: END OF LIST IS DEFINED AS AN ALL-ZERO EntryType. Preferably, an entire OTP_DIRECTORY_ITEM would all be zero.

Variable-length records … So something such as:
typedef struct _OTP_DIRECTORY_ITEM {
    uint16_t EntryType; // with 0x0000 defined as "end of list"
    uint16_t StartRow;  // row where that entry is stored
    uint16_t RowCount;  // count of consecutive rows
    uint16_t CRC16; // Validates the prior three entries.
} OTP_DIRECTORY_ITEM;
Importantly, this will allow for later changes to what is programmed in, while allowing the firmware to search for (and use) an entry, or detect that the entry does not appear to have been programmed.

It also prevents issues with partially-programmed entries, if the directory is written only after the entry is successfully written.

I’m reserving EntryType of 0x0000 for end of list (functionally required to be this value, to allow appending items later), and reserving 0x0001 for usb_whitelabel usage.

Gathering as much of the discussion in one place as I can find.

Directory Entries are 4 rows
First row is EntryType, 0x0000 is end of list (no more entries)
Directory items are stored backwards from the last writable address 0xf7c-0xf7e
Search of directory items is from back to front, looking for 0x0000 (unprogrammed) as end of list. This allows to add more later.

EntryTypes:
0. EOL

usb_whitelabel (?)
x509 cert
Info strings

The current setup is something like:

   typedef struct _OTP_DIRECTORY_ITEM {
        uint16_t EntryType; // with 0x0000 defined as "end of list"
        uint16_t StartRow;  // row where that entry is stored
        uint16_t RowCount;  // count of consecutive rows
        uint16_t CRC16; // Validates the prior three entries.
    } OTP_DIRECTORY_ITEM;

    enum {
        OTP_DIRECTORY_ITEM_TYPE_END = 0x0000,
        OTP_DIRECTORY_ITEM_TYPE_USB_WHITELABEL = 0x0001,
        OTP_DIRECTORY_ITEM_TYPE_CERT = 0x0001,
        OTP_DIRECTORY_ITEM_TYPE_DEVICE_INFO = 0x0002,

    };

    OTP_DIRECTORY_ITEM directory_item[4] = {
        {OTP_DIRECTORY_ITEM_TYPE_END, 0, 0, 0},
        {OTP_DIRECTORY_ITEM_TYPE_CERT, 0x100, 7*64, 0},
        {OTP_DIRECTORY_ITEM_TYPE_DEVICE_INFO, 0x2c0, 1*64, 0},
        {OTP_DIRECTORY_ITEM_TYPE_USB_WHITELABEL, 0xd0, 1*64, 0},
    };

I’m super inclined to put the info page first, before the cert. I know it doesn’t matter, but it feels orderly to me.

Really close to done with with this - for now… I can see the finish line

ian · February 17, 2025, 12:08pm

This should probably move to the other thread now, but the discussion of OTP directory is here so I will continue for now:

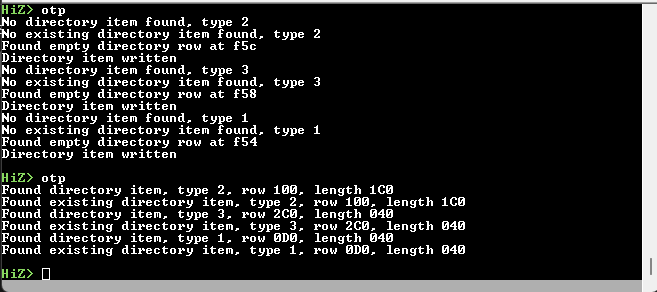

A simple opt command to demonstrate:

Searching for existing records, backwards
0x0000 is the end of directory indicator
Write entry if not present, and verify
Read entry and verify CRC

Now for integration I think it will go something like this:

Add white label directory entry when programming white label info
~~Parse device info from cert~~, add device info page and directory entry
Burn the cert, add cert directory entry

Then tie it all up in a manufacturing binmode and it should be done

mbrugman · February 17, 2025, 1:46pm

So cool to see those ideas come to reality

ian · February 17, 2025, 2:10pm

Getting the raw individual OID values turned out to be quite the adventure, but the info section now seems to be parsing out of the cert data correctly:

:0x01:Bus Pirate:0x00::0x02:6:0x00::0x03:2:0x00::0x04:CN:0x00::0x05:Where Labs LLC:0x00::0x06:2025-02-16 13:01:03:0x00:

mbrugman · February 17, 2025, 2:25pm

Yeah, ASN.1 can be weird, right? The whole tag value notation with the different encodings is something for sure

henrygab · February 21, 2025, 9:26am

IIRC, per-file protections are possible (branch protection rules?) … I’ll take a look in the next few days. Submodules increase complexity for non-expert git users … I’ve found it a support headache and generally recommend avoiding it where possible.

ian · February 21, 2025, 10:17am

Sure, if there’s a better way to do it, I’m all for it. It also slows down my pushes by checking the submodule every time.
