New Button Idea to Consider

I noticed the button is connected to one of the ADC I/O pins on the RP 2040. This gave me a wild idea, what if you replaced the single action tactile push button with one of those tiny X-Y D-pad-like discrete joysticks, using a resistive divider to differentiate between the different presses.

Alternatively, how about one of those pots (real potentiometer, not an optical encoder) with a push button action? That would also go with the ADC input. But that seems lame, because usually you’d want such a knob to be free spinning multi-rotation. Not sure offhand if those analog pins can be a counter — and certainly a single pin can’t work as a quadrature decoder to pick up direction of rotation.

So the knob ideas are probably not any good. But the discrete joystick might have merit. Could potentially even use the same existing button — I’ve seen some really tiny versions of this type of switch. Now this also assumes you have room on the PCB for a presumably larger footprint and the handful of resistors.

5 Likes

Interesting. There were originally 3 buttons. An XY + push would be awesome.

2 Likes

If we live with the over voltage detect coming in through the analog mux going forward, then we would have 3 gpios to work with. Concerns would be space over the USB connector, and it would possibly need separate tooling for the case.

1 Like

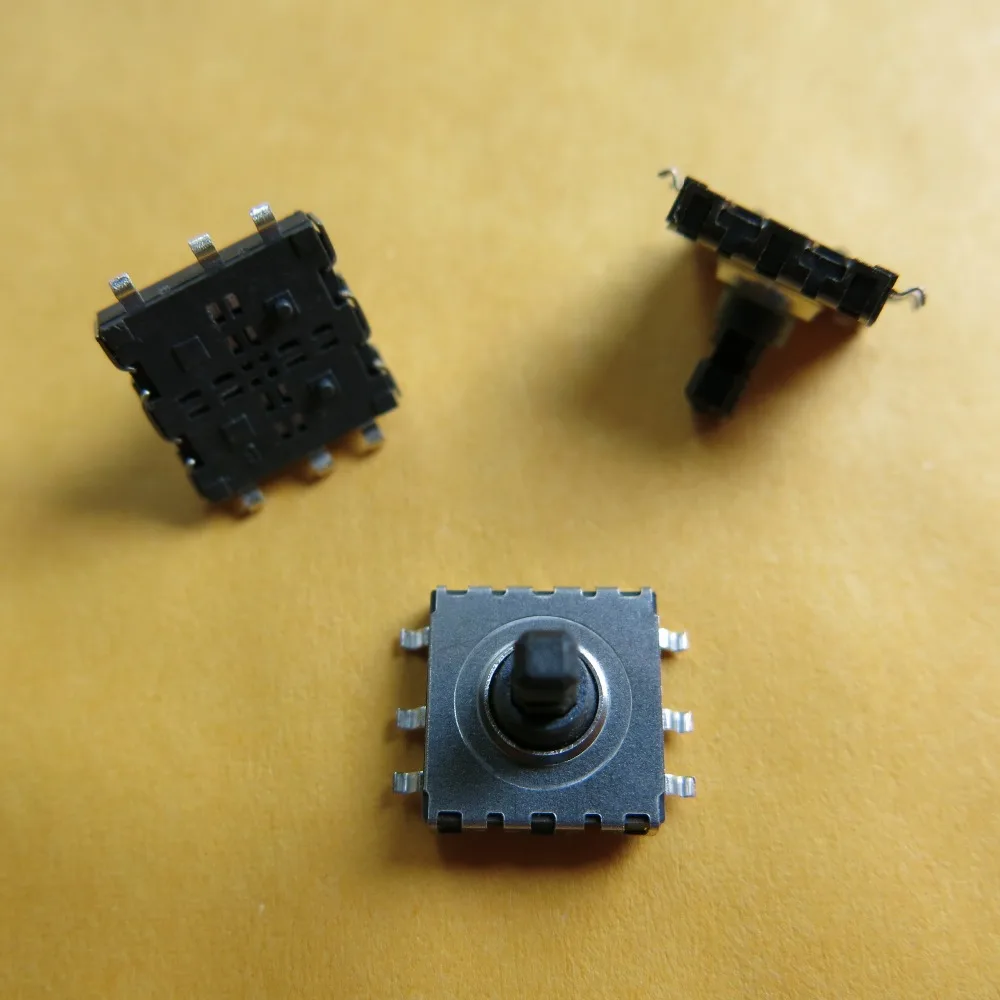

This might be kinda silly, but just in case you haven’t come across this part:

It has a really satisfying chunky rotation that you might be able to read with some clever resistor divider setup.

Or if you have 3 pins, you could (more realistically) go with one of these rotary encoder/switches:
