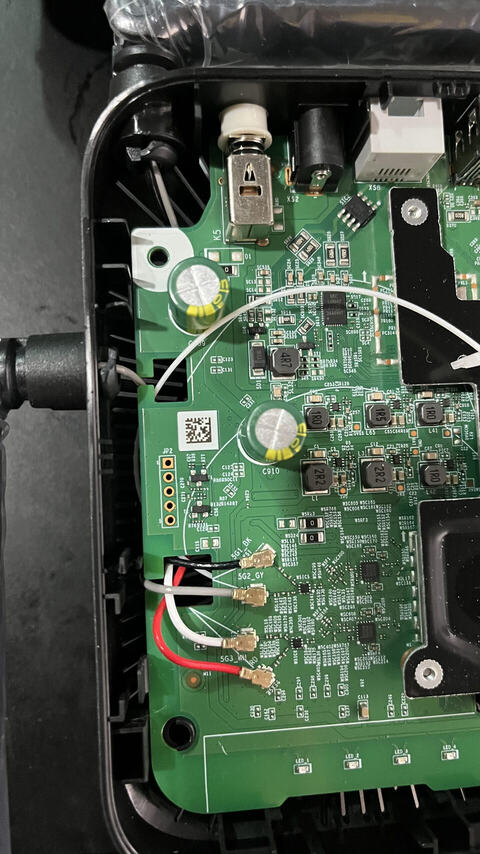

I’m using the bus pirate V5 on a board with UART. The device is HG5142HT.
I have the following situation which I am unsure how to resolve.
I’ll refer to the pins as pin 1 - 5 in the order top (square) to down.
Pin 1: VOUT (red)
Pin 2: GND (black)
Pin 3: RX (brown IO4)
Pin 4: TX (purple IO5)
The settings that work:
Baud: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
Signal Inversion: Inverted
If I don’t connect TX, I am able to see output via RX. If I connect TX I get nothing.
The device needs to be powered on, but it seems I also need to supply power via VOUT using W (power on). I’ve tried with it off but no dice.
If it helps, the last line of output that I get from RX (without TX) is:
proc_set_uart_enable enable=0 g_uart_enable_boot=0x0
That tells me it might be inherently disabled, but since I can get output in the beginning during boot, I almost feel like it should be possible to perhaps drop into the bootloader.
What I am trying to do is to be able to give input while simultaneously receive output. On prior devices I’ve not had this issue. I don’t know what to do here, I am at a loss.
You guys have any ideas? All help is greatly appreciated.
For reference, here’s the full output.
UART>
UART> m
Mode selection
1. HiZ
2. 1WIRE
3. UART
4. HDUART
5. I2C
6. SPI
7. 2WIRE
8. 3WIRE
9. DIO
10. LED
11. INFRARED
12. JTAG
x. Exit
Mode > 3
Mode: UART
Use previous settings?
UART speed: 115200 baud
Data bits: 8 0.0V 0.0V 0.0V 0.0V 0.0V 0.0V 0.0V
Parity: None
Stop bits: 1
Hardware flow control: None
Signal inversion: Inverted
Vout: ERROR < 2.96V |
ERR - - - - TX-> RX<- - - GND
0.0V 0.0V 0.0V 0.0V 0.0V 0.0V 0.0V 0.0V 0.0V GND
UART>
UART> W
Power supply
Volts (0.80V-5.00V)
x to exit (3.30) >
Maximum current (1mA-500mA), 0 for unlimited
- - - - - TX-> RX<- -
3.30V requested, closest value: 3.30V 0.0V 0.0V 0.0V 0.0V
300.0mA requested, closest value: 300.0mA
Undervoltage limit: 2.96V (10%)
Vout: 3.29V/300.0mA max/2.96V min |
Vreg output: 3.3V, Vref/Vout pin: 3.3V, Current: 2.4mA
002.1mA - - - - TX-> RX<- - - GND
UART> bridge
UART bridge. Press Bus Pirate button to exit.
