Porting DirtyJTAG

General
81

@mbrugman could you please share logic analyzer signals graph with decoder when messing with DirtyJTAG and physical steps what done when like when you power on when you issue cable dirtyjtag etc.

Thanks in advance! No rush

Edit: And me I think I will try with some simplier target that is not a brick at the moment.

3 Likes
82

@AreYouLoco - Here’s some data for you!

The target device is an Atmel ATMega64a.

There wasn’t much action on the logic analyzer when I powered up the target or t he BP, so I won’t bother with that.

The first interesting thing was `cable dirtyjtag`:
┌──(matty💊s76)-[~/data/projects/BusPirate5-firmware]
└─$ sudo jtag

UrJTAG 2021.03 #d9a2943f
Copyright (C) 2002, 2003 ETC s.r.o.
Copyright (C) 2007, 2008, 2009 Kolja Waschk and the respective authors

UrJTAG is free software, covered by the GNU General Public License, and you are
welcome to change it and/or distribute copies of it under certain conditions.
There is absolutely no warranty for UrJTAG.

warning: UrJTAG may damage your hardware!
Type "quit" to exit, "help" for help.

jtag> cable dirtyjtag
jtag>

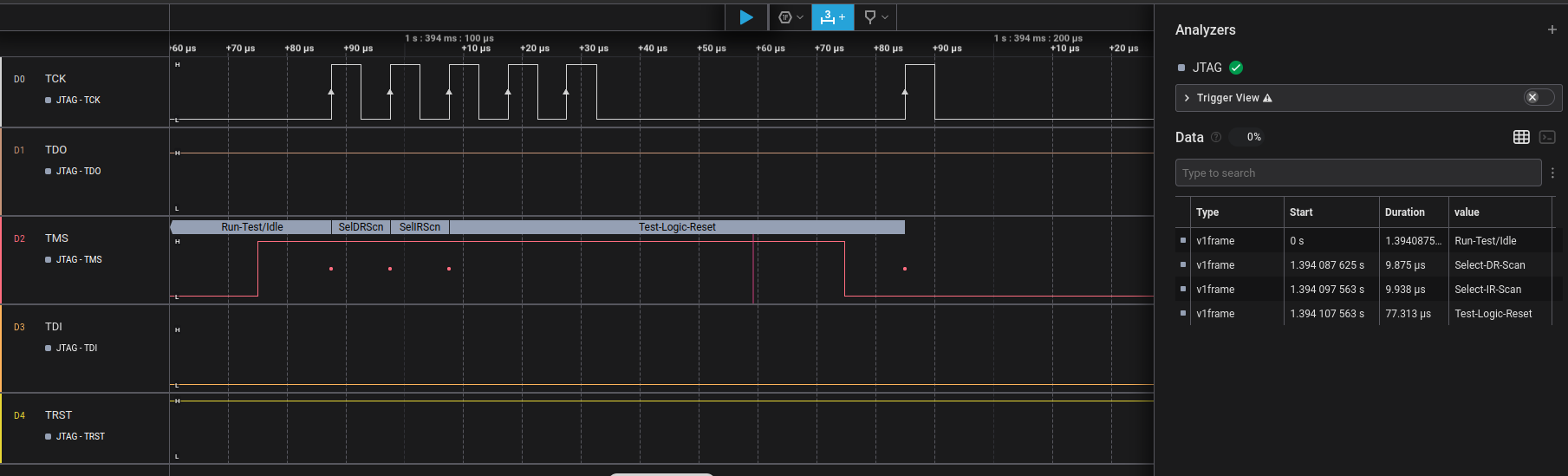

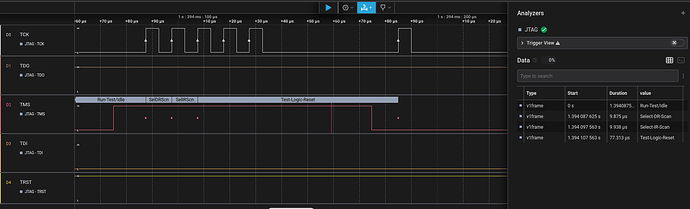

Logic analyzer:

dirtyJtag_SelectCable
dirtyJtag_SelectCable1809×549 57.9 KB

It’s pretty clear what’s happening there.

Next was a `detect`:
jtag> detect
IR length: 4
Chain length: 1
Device Id: 01011001011000000010000000111111 (0x5960203F)
  Manufacturer: Atmel (0x03F)
  Part(0):      ATMega64a (0x9602)
  Stepping:     A
  Filename:     /usr/local/share/urjtag/atmel/atmega64a/atmega64a
jtag>

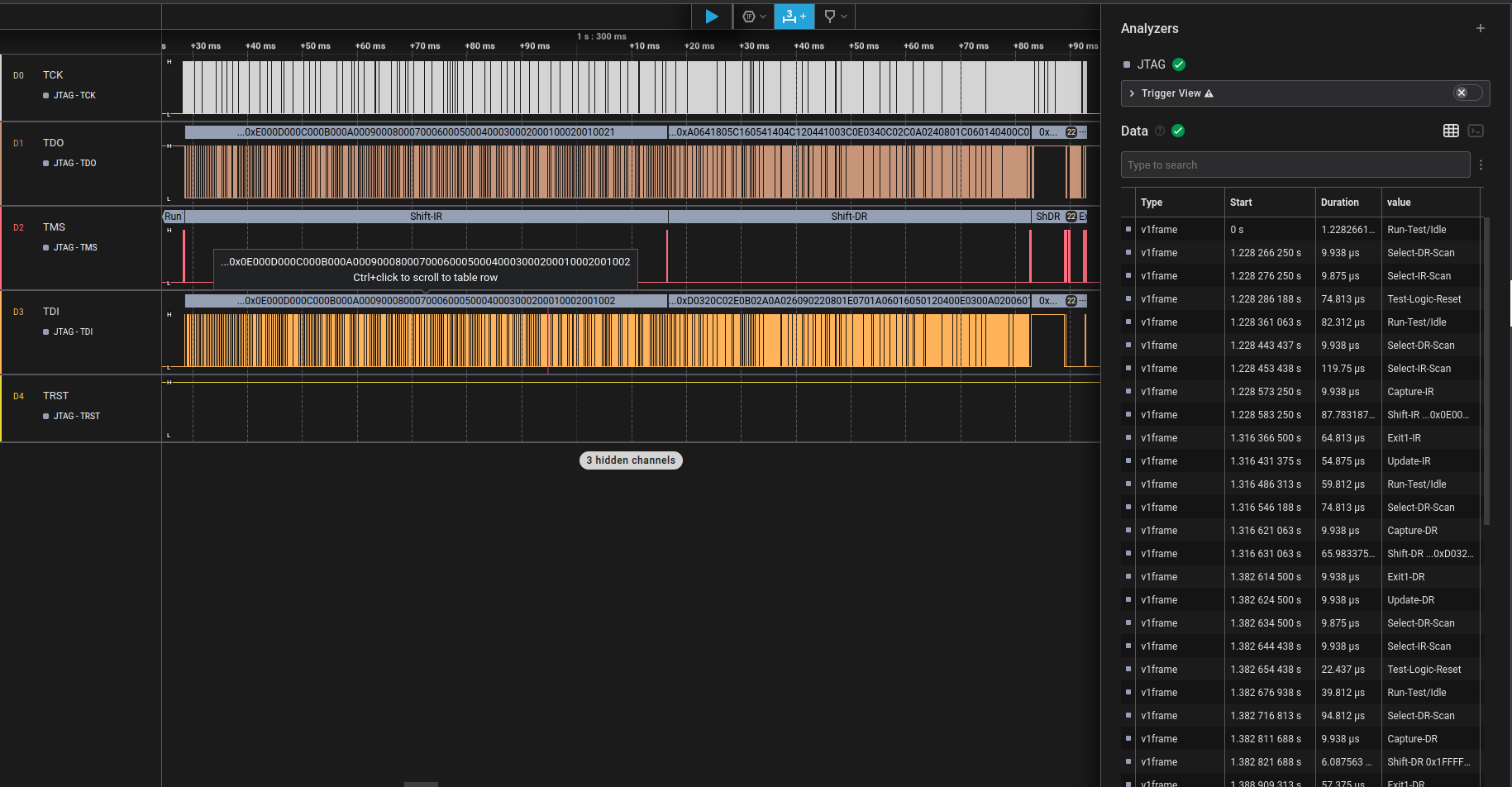

And the Logic Analyzer shows a lot!

dirtyJTAG_Detect
dirtyJTAG_Detect1829×952 138 KB

Here’s the protocol analysis from the detect:

name type start_time duration value
JTAG v1frame 0 1.228266188 Run-Test/Idle
JTAG v1frame 1.22826625 0.000009937 Select-DR-Scan
JTAG v1frame 1.22827625 0.000009875 Select-IR-Scan
JTAG v1frame 1.228286187 0.000074813 Test-Logic-Reset
JTAG v1frame 1.228361063 0.000082312 Run-Test/Idle
JTAG v1frame 1.228443437 0.000009938 Select-DR-Scan
JTAG v1frame 1.228453438 0.00011975 Select-IR-Scan
JTAG v1frame 1.22857325 0.000009937 Capture-IR
JTAG v1frame 1.22858325 0.087783187 Shift-IR …0x0E000D000C000B000A0009000800070006000500040003000200010002001002 …0xE000D000C000B000A00090008000700060005000400030002000100020010021
JTAG v1frame 1.3163665 0.000064813 Exit1-IR
JTAG v1frame 1.316431375 0.000054875 Update-IR
JTAG v1frame 1.316486312 0.000059812 Run-Test/Idle
JTAG v1frame 1.316546187 0.000074813 Select-DR-Scan
JTAG v1frame 1.316621063 0.000009937 Capture-DR
JTAG v1frame 1.316631062 0.065983375 Shift-DR …0xD0320C02E0B02A0A026090220801E0701A06016050120400E0300A0200601002 …0xA0641805C160541404C120441003C0E0340C02C0A0240801C060140400C02004
JTAG v1frame 1.3826145 0.000009937 Exit1-DR
JTAG v1frame 1.3826245 0.000009937 Update-DR
JTAG v1frame 1.3826345 0.000009875 Select-DR-Scan
JTAG v1frame 1.382644437 0.000009937 Select-IR-Scan
JTAG v1frame 1.382654438 0.000022438 Test-Logic-Reset
JTAG v1frame 1.382676938 0.000039812 Run-Test/Idle
JTAG v1frame 1.382716813 0.000094812 Select-DR-Scan
JTAG v1frame 1.382811688 0.000009937 Capture-DR
JTAG v1frame 1.382821687 0.006087563 Shift-DR 0x1FFFFFFFFFFFFFFFF 0x1FFFFFFFF5960203F
JTAG v1frame 1.388909313 0.000057375 Exit1-DR
JTAG v1frame 1.38896675 0.000062312 Update-DR
JTAG v1frame 1.389029125 0.000032438 Run-Test/Idle
JTAG v1frame 1.389061625 0.000009875 Select-DR-Scan
JTAG v1frame 1.389071563 0.000079812 Select-IR-Scan
JTAG v1frame 1.389151438 0.000009938 Capture-IR
JTAG v1frame 1.389161438 0.000192125 Shift-IR 0x2 0x1
JTAG v1frame 1.389353625 0.000059813 Exit1-IR
JTAG v1frame 1.3894135 0.000204625 Update-IR
JTAG v1frame 1.389618187 0.00012725 Run-Test/Idle
JTAG v1frame 1.3897455 0.000167188 Select-DR-Scan
JTAG v1frame 1.38991275 0.000009875 Capture-DR
JTAG v1frame 1.389922687 0.002423562 Shift-DR 0x0000000000000000000000000000000000000000000000000000 0x01010044023581000049249200D1830552402492490492492012
JTAG v1frame 1.392346312 0.000064813 Exit1-DR
JTAG v1frame 1.392411188 0.000054875 Update-DR
JTAG v1frame 1.392466125 0.000064812 Run-Test/Idle
JTAG v1frame 1.392531 0.000009937 Select-DR-Scan
JTAG v1frame 1.392541 0.000079812 Select-IR-Scan
JTAG v1frame 1.392620875 0.000009875 Capture-IR
JTAG v1frame 1.392630812 0.000149688 Shift-IR 0xF 0x1
JTAG v1frame 1.392780563 0.000062375 Exit1-IR
JTAG v1frame 1.392843 0.000057312 Update-IR

That’s a lot of stuff. I’ve attached a .zipfile that has the two logic analyzer traces and a .csv of the protocol analysis of the detect. You should be able to open the .sal files in Logic 2 from Saleae.

dirtyJTAG_Saleae.zip (15.2 KB)

1 Like
83

Thank you a lot! I will analyze it and compare to what I get now.

I have one saved capture from where it seems to worked once. Also will compare. It seems I am not passing by Capture IR → shift ir → and there is no Exit IR but just logic reset all the way further. Might indicate that I am not really activating JTAG mode at all with my latest tries. The board might be dead as well. Or cleaned content of a flash for sure. Because there is nothing on display any longer.

Ekhhh. One to break one to hack one for reference mantra.

2 Likes
